Inheritance diagram for cboard_Breadboard:

[legend]

Collaboration diagram for cboard_Breadboard:

[legend]

Public Member Functions
void	SetScale (double scale) override
	Set board draw scale.

std::string	GetName (void) override
	Get board name registered in PICSimLab.

std::string	GetAboutInfo (void) override
	Return the about information of part.

int	DebugInit (int dtyppe) override
	Start debug support.

std::string	GetDebugName (void) override
	Get debug interface name.

void	DebugLoop (void) override
	debug step (pooling)

int	CpuInitialized (void) override
	return true if microcontroller is initialized

void	MSetSerial (const char *port) override
	Set serial port name to use.

int	MInit (const char processor, const char fname, float freq) override
	board microcontroller init

void	MEnd (void) override
	board microcontroller end

int	MGetArchitecture (void) override
	Return board microcontroller architecture.

int	MDumpMemory (const char *fname) override
	board microcontroller save non volatile memory to hex file

void	MEraseFlash (void) override
	board microcontroller erase flash memory (program)

void	MSetFreq (float freq) override
	board microcontroller set frequency

float	MGetFreq (void) override
	board microcontroller get frequency

void	MSetVCC (float vcc) override
	board microcontroller set vcc

float	MGetVCC (void) override
	board microcontroller get vcc

float	MGetInstClockFreq (void) override
	board microcontroller get cpu internal clock (in PIC frequency/4)

int	MGetPinCount (void) override
	board microcontroller pin count

std::string	MGetPinName (int pin) override
	board microcontroller pin name

void	MSetPin (int pin, unsigned char value) override
	board microcontroller set digital pin

void	MSetPinDOV (int pin, unsigned char ovalue) override
	board microcontroller set Default Open Value (external pull)

void	MSetAPin (int pin, float value) override
	board microcontroller set analog pin

unsigned char	MGetPin (int pin) override
	board microcontroller get digital pin value

const picpin *	MGetPinsValues (void) override
	board microcontroller get all pins list struct

void	MStep (void) override
	board microcontroller run one step

void	MStepResume (void) override
	board microcontroller run one or two steps to resume instruction

void	MReset (int flags) override
	board microcontroller reset

unsigned short *	DBGGetProcID_p (void) override
	board microcontroller get pointer to processor ID

unsigned int	DBGGetPC (void) override
	board microcontroller get PC

void	DBGSetPC (unsigned int pc) override
	board microcontroller set PC

unsigned char *	DBGGetRAM_p (void) override
	board microcontroller get RAM memory pointer

unsigned char *	DBGGetROM_p (void) override
	board microcontroller get ROM (FLASH) memory pointer

unsigned char *	DBGGetCONFIG_p (void) override
	board microcontroller get CONFIG memory pointer

unsigned char *	DBGGetID_p (void) override
	board microcontroller get internal IDS memory pointer

unsigned char *	DBGGetEEPROM_p (void) override
	board microcontroller get data EEPROM memory pointer

unsigned int	DBGGetRAMSize (void) override
	board microcontroller get RAM memory size

unsigned int	DBGGetROMSize (void) override
	board microcontroller get ROM (FLASH) memory size

unsigned int	DBGGetCONFIGSize (void) override
	board microcontroller get CONFIG memory size

unsigned int	DBGGetIDSize (void) override
	board microcontroller get internal IDS memory size

unsigned int	DBGGetEEPROM_Size (void) override
	board microcontroller get data EEPROM memory size

int	GetUARTRX (const int uart_num) override
	Return the UART N RX pin number.

int	GetUARTTX (const int uart_num) override
	Return the UART N TX pin number.

void	Draw (void) override
	Called ever 100ms to draw board.

void	Run_CPU (void) override
	Paralle thread called ever 100ms to run cpu code.

std::string	GetSupportedDevices (void) override
	Return a list of supported microcontrollers.

void	Reset (void) override
	Reset board status.

void	EvMouseButtonPress (unsigned int button, unsigned int x, unsigned int y, unsigned int state) override
	Event on the board.

void	EvMouseButtonRelease (unsigned int button, unsigned int x, unsigned int y, unsigned int state) override
	Event on the board.

void	EvKeyPress (unsigned int key, unsigned int mask) override
	Event on the board.

void	EvKeyRelease (unsigned int key, unsigned int mask) override
	Event on the board.

void	RefreshStatus (void) override
	Called ever 1s to refresh status.

void	WritePreferences (void) override
	Called to save board preferences in configuration file.

void	ReadPreferences (char name, char value) override
	Called whe configuration file load preferences.

unsigned short	GetInputId (char *name) override
	return the input ids numbers of names used in input map

unsigned short	GetOutputId (char *name) override
	return the output ids numbers of names used in output map

void	EndServers (void) override
	board servers shutdown

int	GetDefaultClock (void) override
	Get board default clock in MHz.

Public Member Functions inherited from bsim_picsim
unsigned int	DBGGetRAMLAWR (void) override
	board microcontroller get last ram write address

unsigned int	DBGGetRAMLARD (void) override
	board microcontroller get last ram read address

Public Member Functions inherited from board
virtual std::string	GetPictureFileName (void)
	Return the filename of board picture.

virtual std::string	GetMapFile (void)
	Return the filename of board picture map.

virtual void	EvMouseMove (unsigned int button, unsigned int x, unsigned int y, unsigned int state)
	Event on the board.

virtual void	EvOnShow (void)
	Event on the board.

virtual void	EvThreadRun (void)
	Event on the board.

virtual void	board_Event (const char *controlname)
	Called when window side controls are activated.

virtual void	board_ButtonEvent (const char *controlname, unsigned int button, unsigned int x, unsigned int y, unsigned int state)
	Called when window side controls are activated.

	board (void)
	Called once on board creation.

virtual	~board (void)
	Called once on board destruction.

void	SetUseOscilloscope (int uo)
	Enable/disable oscilloscope measurement.

void	SetUseSpareParts (int sp)
	Enable/disable spare parts.

int	GetUseOscilloscope (void)
	Get if oscilloscope is in use.

int	GetUseSpareParts (void)
	Get if spare parts is in use.

void	SetProcessorName (std::string proc)
	Set board processor.

std::string	GetProcessorName (void)
	Get board processor in use.

int	GetInputCount (void)
	Get board input count.

input_t *	GetInput (int n)
	Get board input.

int	GetOutputCount (void)
	Get board output count.

output_t *	GetOutput (int n)
	Get board input.

int	MGetClocksPerInstructions (void)
	board microcontroller get Clock pulses per instruction (in PIC equal to 4)

unsigned char	CalcAngle (int i, int x, int y)
	Calc rotary potentiometer angle.

double	GetScale (void)
	Get board draw scale.

std::string	GetDefaultProcessor (void)
	Get board default processor.

void	SetDefaultProcessor (std::string dproc)
	Set board default processor.

uint32_t	GetInstCounter (void)
	Get instruction counter.

uint32_t	GetInstCounter_us (const uint32_t start)
	Get elapsed time from instruction counter in us.

uint32_t	GetInstCounter_ms (const uint32_t start)
	Get elapsed time from instruction counter in us.

int	TimerRegister_us (const double micros, void(Callback)(void arg), void *arg)
	Register a new timer with time in us (default enabled)

int	TimerRegister_ms (const double miles, void(Callback)(void arg), void *arg)
	Register a new timer with time in ms (default enabled)

int	TimerUnregister (const int timer)
	Unregister timer.

int	TimerChange_us (const int timer, const double micros)
	Modify timer value with us.

int	TimerChange_ms (const int timer, const double miles)
	Modify timer value with us.

int	TimerSetState (const int timer, const int enabled)
	Enable or disable timer.

uint64_t	TimerGet_ns (const int timer)
	Get elapsed time from instruction counter in ns.

void	TimerUpdateFrequency (float freq)
	Update Timer counters on frequency change.

virtual void	IoLockAccess (void)
	Lock IO to others threads access.

virtual void	IoUnlockAccess (void)
	Unlock IO to others threads access.

virtual std::string	GetClkLabel (void)
	Return the description of clk label.

Public Member Functions inherited from bsim_simavr
virtual void	UpdateHardware (void)

void	SerialSend (bitbang_uart_t *_bb_uart, const unsigned char value)

Private Attributes
int	ptype

int	micbmp

unsigned char	jmp [1]

Additional Inherited Members
Static Public Member Functions inherited from bsim_simavr
static void	out_hook (struct avr_irq_t irq, uint32_t value, void param)

static void	ddr_hook (struct avr_irq_t irq, uint32_t value, void param)

Public Attributes inherited from bsim_simavr
usi_t	USI

Protected Member Functions inherited from board
virtual void	RegisterRemoteControl (void)
	Register remote control variables.

void	InstCounterInc (void)
	Increment the Intructions Counter.

void	ReadMaps (void)
	Read maps.

void	StartThread (void)
	Start parallel thread.

void	StopThread (void)
	Stop parallel thread.

Protected Member Functions inherited from bsim_simavr
void	pins_reset (void)

Protected Attributes inherited from bsim_picsim
_pic	pic

Protected Attributes inherited from board
std::string	Proc
	Name of processor in use.

std::string	DProc
	Name of default board processor.

input_t	input [MAX_IDS]
	input map elements

input_t *	input_ids [MAX_IDS]
	input map elements by id order

output_t	output [MAX_IDS]
	output map elements

output_t *	output_ids [MAX_IDS]
	output map elements by id order

int	inputc
	input map elements counter

int	outputc
	output map elements counter

int	use_oscope
	use oscilloscope window

int	use_spare
	use spare parts window

unsigned char	p_RST
	board /RESET pin state

float	Scale

Protected Attributes inherited from bsim_simavr
avr_t *	avr

avr_irq_t *	serial_irq [MAX_UART_COUNT]

picpin	pins [256]

avr_irq_t *	Write_stat_irq [100]

unsigned int	serialbaud [MAX_UART_COUNT]

float	serialexbaud [MAX_UART_COUNT]

int	avr_debug_type

serialfd_t	serialfd

bitbang_uart_t	bb_uart [MAX_UART_COUNT]

unsigned char *	eeprom

unsigned char	uart_config [MAX_UART_COUNT]

unsigned char	usart_count

unsigned int	UCSR_base [MAX_UART_COUNT]

int	pkg

Member Function Documentation

◆ CpuInitialized()

int cboard_Breadboard::CpuInitialized ( void )

overridevirtual

return true if microcontroller is initialized

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGGetCONFIG_p()

unsigned char * cboard_Breadboard::DBGGetCONFIG_p ( void )

overridevirtual

board microcontroller get CONFIG memory pointer

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGGetCONFIGSize()

unsigned int cboard_Breadboard::DBGGetCONFIGSize ( void )

overridevirtual

board microcontroller get CONFIG memory size

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGGetEEPROM_p()

unsigned char * cboard_Breadboard::DBGGetEEPROM_p ( void )

overridevirtual

board microcontroller get data EEPROM memory pointer

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGGetEEPROM_Size()

unsigned int cboard_Breadboard::DBGGetEEPROM_Size ( void )

overridevirtual

board microcontroller get data EEPROM memory size

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGGetID_p()

unsigned char * cboard_Breadboard::DBGGetID_p ( void )

overridevirtual

board microcontroller get internal IDS memory pointer

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGGetIDSize()

unsigned int cboard_Breadboard::DBGGetIDSize ( void )

overridevirtual

board microcontroller get internal IDS memory size

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGGetPC()

unsigned int cboard_Breadboard::DBGGetPC ( void )

overridevirtual

board microcontroller get PC

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGGetProcID_p()

unsigned short * cboard_Breadboard::DBGGetProcID_p ( void )

overridevirtual

board microcontroller get pointer to processor ID

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGGetRAM_p()

unsigned char * cboard_Breadboard::DBGGetRAM_p ( void )

overridevirtual

board microcontroller get RAM memory pointer

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGGetRAMSize()

unsigned int cboard_Breadboard::DBGGetRAMSize ( void )

overridevirtual

board microcontroller get RAM memory size

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGGetROM_p()

unsigned char * cboard_Breadboard::DBGGetROM_p ( void )

overridevirtual

board microcontroller get ROM (FLASH) memory pointer

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGGetROMSize()

unsigned int cboard_Breadboard::DBGGetROMSize ( void )

overridevirtual

board microcontroller get ROM (FLASH) memory size

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DBGSetPC()

void cboard_Breadboard::DBGSetPC ( unsigned int pc )

overridevirtual

board microcontroller set PC

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DebugInit()

int cboard_Breadboard::DebugInit ( int dtyppe )

overridevirtual

Start debug support.

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ DebugLoop()

void cboard_Breadboard::DebugLoop ( void )

overridevirtual

debug step (pooling)

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ Draw()

void cboard_Breadboard::Draw ( void )

overridevirtual

Called ever 100ms to draw board.

Implements board.

Here is the call graph for this function:

◆ EndServers()

void cboard_Breadboard::EndServers ( void )

overridevirtual

board servers shutdown

Reimplemented from bsim_picsim.

◆ EvKeyPress()

void cboard_Breadboard::EvKeyPress	(	unsigned int	key,
		unsigned int	mask
	)

overridevirtual

Event on the board.

Implements board.

◆ EvKeyRelease()

void cboard_Breadboard::EvKeyRelease	(	unsigned int	key,
		unsigned int	mask
	)

overridevirtual

Event on the board.

Implements board.

◆ EvMouseButtonPress()

void cboard_Breadboard::EvMouseButtonPress	(	unsigned int	button,
		unsigned int	x,
		unsigned int	y,
		unsigned int	state
	)

overridevirtual

Event on the board.

Implements board.

Here is the call graph for this function:

◆ EvMouseButtonRelease()

void cboard_Breadboard::EvMouseButtonRelease	(	unsigned int	button,
		unsigned int	x,
		unsigned int	y,
		unsigned int	state
	)

overridevirtual

Event on the board.

Implements board.

Here is the call graph for this function:

◆ GetAboutInfo()

std::string cboard_Breadboard::GetAboutInfo ( void )

inlineoverridevirtual

Return the about information of part.

Implements board.

◆ GetDebugName()

std::string cboard_Breadboard::GetDebugName ( void )

overridevirtual

Get debug interface name.

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ GetDefaultClock()

int cboard_Breadboard::GetDefaultClock ( void )

overridevirtual

Get board default clock in MHz.

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ GetInputId()

unsigned short cboard_Breadboard::GetInputId ( char * name )

overridevirtual

return the input ids numbers of names used in input map

Implements board.

◆ GetName()

std::string cboard_Breadboard::GetName ( void )

inlineoverridevirtual

Get board name registered in PICSimLab.

Implements board.

◆ GetOutputId()

unsigned short cboard_Breadboard::GetOutputId ( char * name )

overridevirtual

return the output ids numbers of names used in output map

Implements board.

◆ GetSupportedDevices()

std::string cboard_Breadboard::GetSupportedDevices ( void )

inlineoverridevirtual

Return a list of supported microcontrollers.

Implements board.

◆ GetUARTRX()

int cboard_Breadboard::GetUARTRX ( const int uart_num )

overridevirtual

Return the UART N RX pin number.

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ GetUARTTX()

int cboard_Breadboard::GetUARTTX ( const int uart_num )

overridevirtual

Return the UART N TX pin number.

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MDumpMemory()

int cboard_Breadboard::MDumpMemory ( const char * fname )

overridevirtual

board microcontroller save non volatile memory to hex file

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MEnd()

void cboard_Breadboard::MEnd ( void )

overridevirtual

board microcontroller end

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MEraseFlash()

void cboard_Breadboard::MEraseFlash ( void )

overridevirtual

board microcontroller erase flash memory (program)

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MGetArchitecture()

int cboard_Breadboard::MGetArchitecture ( void )

overridevirtual

Return board microcontroller architecture.

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MGetFreq()

float cboard_Breadboard::MGetFreq ( void )

overridevirtual

board microcontroller get frequency

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MGetInstClockFreq()

float cboard_Breadboard::MGetInstClockFreq ( void )

overridevirtual

board microcontroller get cpu internal clock (in PIC frequency/4)

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MGetPin()

unsigned char cboard_Breadboard::MGetPin ( int pin )

overridevirtual

board microcontroller get digital pin value

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MGetPinCount()

int cboard_Breadboard::MGetPinCount ( void )

overridevirtual

board microcontroller pin count

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MGetPinName()

std::string cboard_Breadboard::MGetPinName ( int pin )

overridevirtual

board microcontroller pin name

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MGetPinsValues()

const picpin * cboard_Breadboard::MGetPinsValues ( void )

overridevirtual

board microcontroller get all pins list struct

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MGetVCC()

float cboard_Breadboard::MGetVCC ( void )

overridevirtual

board microcontroller get vcc

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MInit()

int cboard_Breadboard::MInit	(	const char *	processor,
		const char *	fname,
		float	freq
	)

overridevirtual

board microcontroller init

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MReset()

void cboard_Breadboard::MReset ( int flags )

overridevirtual

board microcontroller reset

Reimplemented from bsim_picsim.

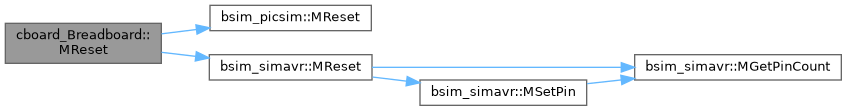

Here is the call graph for this function:

◆ MSetAPin()

void cboard_Breadboard::MSetAPin	(	int	pin,
		float	value
	)

overridevirtual

board microcontroller set analog pin

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MSetFreq()

void cboard_Breadboard::MSetFreq ( float freq )

overridevirtual

board microcontroller set frequency

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MSetPin()

void cboard_Breadboard::MSetPin	(	int	pin,
		unsigned char	value
	)

overridevirtual

board microcontroller set digital pin

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MSetPinDOV()

void cboard_Breadboard::MSetPinDOV	(	int	pin,
		unsigned char	ovalue
	)

overridevirtual

board microcontroller set Default Open Value (external pull)

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MSetSerial()

void cboard_Breadboard::MSetSerial ( const char * port )

overridevirtual

Set serial port name to use.

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MSetVCC()

void cboard_Breadboard::MSetVCC ( float vcc )

overridevirtual

board microcontroller set vcc

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MStep()

void cboard_Breadboard::MStep ( void )

overridevirtual

board microcontroller run one step

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ MStepResume()

void cboard_Breadboard::MStepResume ( void )

overridevirtual

board microcontroller run one or two steps to resume instruction

Reimplemented from bsim_picsim.

Here is the call graph for this function:

◆ ReadPreferences()

void cboard_Breadboard::ReadPreferences	(	char *	name,
		char *	value
	)

overridevirtual

Called whe configuration file load preferences.

Reimplemented from board.

◆ RefreshStatus()

void cboard_Breadboard::RefreshStatus ( void )

overridevirtual

Called ever 1s to refresh status.

Reimplemented from board.

Here is the call graph for this function:

◆ Reset()

void cboard_Breadboard::Reset ( void )

overridevirtual

Reset board status.

Implements board.

Here is the call graph for this function:

◆ Run_CPU()

void cboard_Breadboard::Run_CPU ( void )

overridevirtual

Paralle thread called ever 100ms to run cpu code.

Implements board.

Here is the call graph for this function:

◆ SetScale()

void cboard_Breadboard::SetScale ( double scale )

overridevirtual

Set board draw scale.

Reimplemented from board.

Here is the call graph for this function:

◆ WritePreferences()

void cboard_Breadboard::WritePreferences ( void )

overridevirtual

Called to save board preferences in configuration file.

Reimplemented from board.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/boards/board_Breadboard.h
src/boards/board_Breadboard.cc

Public Member Functions

Private Attributes

Additional Inherited Members

Member Function Documentation

◆ CpuInitialized()

◆ DBGGetCONFIG_p()

◆ DBGGetCONFIGSize()

◆ DBGGetEEPROM_p()

◆ DBGGetEEPROM_Size()

◆ DBGGetID_p()

◆ DBGGetIDSize()

◆ DBGGetPC()

◆ DBGGetProcID_p()

◆ DBGGetRAM_p()

◆ DBGGetRAMSize()

◆ DBGGetROM_p()

◆ DBGGetROMSize()

◆ DBGSetPC()

◆ DebugInit()

◆ DebugLoop()

◆ Draw()

◆ EndServers()

◆ EvKeyPress()

◆ EvKeyRelease()

◆ EvMouseButtonPress()

◆ EvMouseButtonRelease()

◆ GetAboutInfo()

◆ GetDebugName()

◆ GetDefaultClock()

◆ GetInputId()

◆ GetName()

◆ GetOutputId()

◆ GetSupportedDevices()

◆ GetUARTRX()

◆ GetUARTTX()

◆ MDumpMemory()

◆ MEnd()

◆ MEraseFlash()

◆ MGetArchitecture()

◆ MGetFreq()

◆ MGetInstClockFreq()

◆ MGetPin()

◆ MGetPinCount()

◆ MGetPinName()

◆ MGetPinsValues()

◆ MGetVCC()

◆ MInit()

◆ MReset()

◆ MSetAPin()

◆ MSetFreq()

◆ MSetPin()

◆ MSetPinDOV()

◆ MSetSerial()

◆ MSetVCC()

◆ MStep()

◆ MStepResume()

◆ ReadPreferences()

◆ RefreshStatus()

◆ Reset()

◆ Run_CPU()

◆ SetScale()

◆ WritePreferences()
