9.5.7 VCD Dump 16

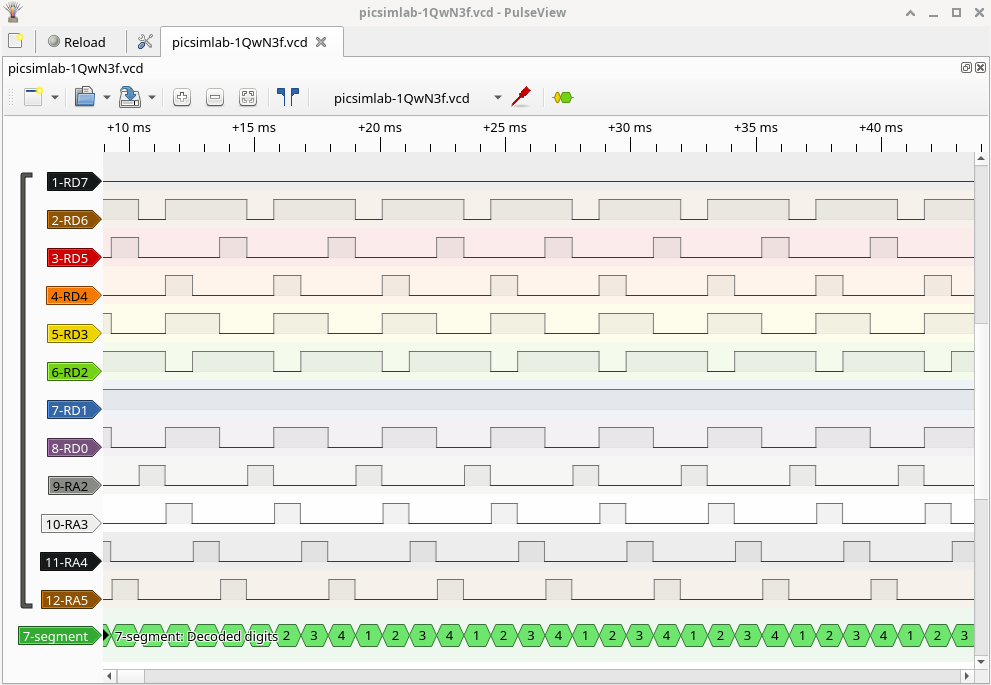

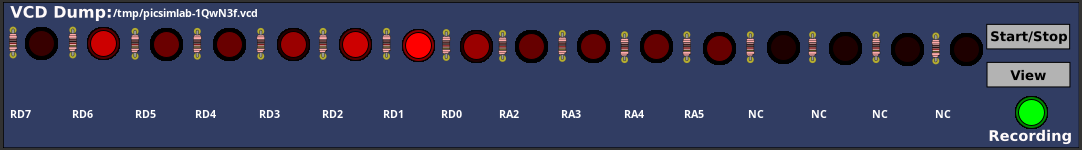

This part is a 16 bits digital value file dump (VCD) recorder. The VCD generated file can be visualized with one external viewer like gtkwave or pulseview.
